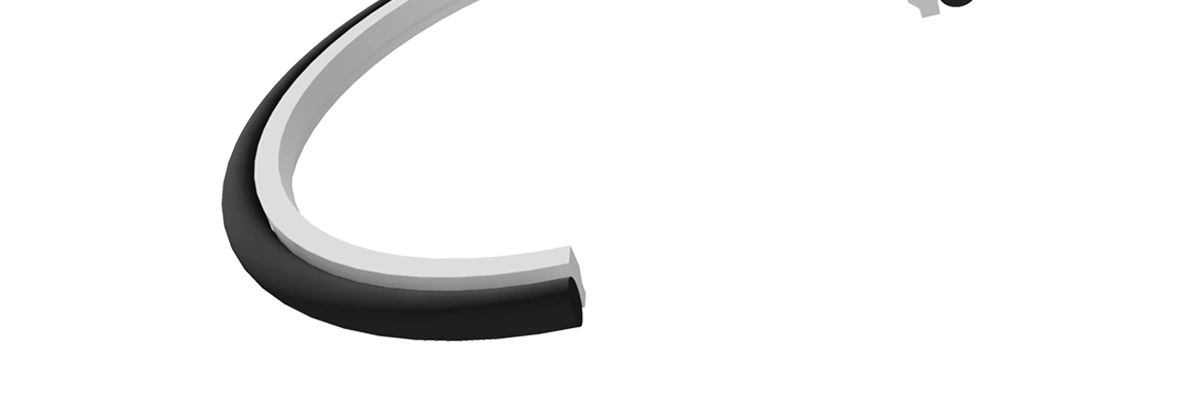

Rod seal, single-acting Type SD 01

The single-acting rod seal type SD 01 is primarily used in cylinders with one-sided pressurization. The media used in these applications range from mineral oil-based hydraulic liquids, environment-friendly bio-oils and water to flame-resistant hydraulic liquids and air. It promises stick-slip free running as well as good dry-running properties.

While the PTFE profile ring seals dynamically against the cylinder surface, the elastic O-ring ensures uniform contact pressure of the PTFE profile ring onto the cylinder surface, and at the same time, a static sealing between profile ring and groove base.

Even with low pressures, the piston seal shows a good sealing effect thanks to the inherent preload of the PTFE profile ring and the contact force of the preloaded O-ring. At higher system pressures, the medium pressurizes the O-ring causing it to press the PTFE seal with enhanced force against the cylinder surface.

With different material combinations, the piston seal can be used reliably across the whole pressure, speed and temperature range.

Application media

  • Mineral oil-based hydraulic liquids
  • Water
  • Air
  • Environment-friendly bio-oils
  • Flame-resistant hydraulic liquids
  • Other media, depending on the O-ring material

Application range

Pressure: up to 40 Mpa (400 bar)

Speed: approx. up to 15 m/s

Temperature: – 30 °C to + +200 °C (depending on the O-ring material)

Surface finish

Roughness depthRaRt
Running surface≤ 0,3 µm≤ 3,0 µm
Groove base≤ 1,6 µm≤ 16,0 µm
Groove flank≤ 1,6 µm≤ 16,0 µm

Installation dimensions

Rods ø DGap size S
Heavy DesignStandard DesignLight DesignGroove base
ø D
Groove width
L +0,2
Radius
R
10 Mpa
max.
20 Mpa
max.
30 Mpa
max.
O-Ring
line ø
8,0 – 18,9ø d + 4,92,20,40,30,20,151,78
8,0 – 18,919,0 – 37,9ø d + 7,33,20,60,40,250,152,62
8,0 – 18,919,0 – 37,938,0 – 199,9ø d + 10,74,21,00,40,250,23,53
19,0 – 37,938,0 – 199,9200,0 – 255,9ø d + 15,16,31,30,50,30,25,33
38,0 – 199,9200,0 – 255,9256,0 – 649,9ø d + 20,58,11,80,60,350,257,0
200,0 – 255,9256,0 – 649,9650,0 – 900,0ø d + 24,08,11,80,60,350,257,0
256,0 – 649,9650,0 – 900,0ø d + 27,39,52,50,70,50,38,4

PTFE profile ring material

Weitere mögliche Werkstoffe finden Sie in unserer PTFE-Werkstoffübersicht unter Downloads.

PTFE + bronze

The standard for hydraulic applications, good gliding behavior, particularly pressure and abrasion resistant, cannot be used in aqueous solutions or acids

PTFE + Glas-MoS2

Particularly good resistance to wear and abrasion, application is possible even with poor lubricating pressure fluids, in water and in water-oil emulsions

PTFE + carbon

Exceptional resistance to abrasion and extrusion; can be used in water-hydraulics

O-ring material

Nitrile rubber NBR: Temperature range − 30 °C to + 120 °C

Fluororubber FPM: Temperature range − 25 °C to + 200 °C
